Fizoptika VG910 Open-Loop Fiber Optic Gyroscope Angular Rate Sensor

Fizoptika VG910 Open-Loop Fiber Optic Gyroscope Angular Rate Sensor

Nazwa marki: Firepower
Numer modelu: MFOG-910
MOQ: 1
Cena £: 1000$
Warunki płatności: L/C, D/P, T/T, Western Union
Zdolność do zaopatrzenia: 500/miesiąc
Szczegółowe informacje
Miejsce pochodzenia:
Chiny
Zakres:
±240°/s
Stabilność zerowego odchylenia ((10s, 1σ):
≤ 0,8°/h
kątowy przypadkowy spacer:
≤0,02°/godz
Przepustowość 3DB:
≥1000 Hz
Powtarzalność zerowego uprzedzenia ((1σ):
≤ 0,8°/h
Nieliniowość współczynnika skali:
≤ 1000 ppm
Waga:
≤150g
Zużycie energii:
≤1,5w
Szczegóły pakowania:
Sponge + karton
Możliwość Supply:
500/miesiąc
Podkreślić:

Fizoptika VG910 fiber optic gyroscope

,

open-loop angular rate sensor

,

fiber optic gyro with warranty

Opis produktu
Fizoptika VG910 Open-Loop Fiber Optic Gyroscope Angular Rate Sensor
Key Specifications
Attribute Value
Range ±240°/s
Zero-bias stability (10s, 1σ) ≤0.8°/h
Angular random walk ≤0.02°/h
3dB Bandwidth ≥1000Hz
Zero-bias repeatability (1σ) ≤0.8°/h
Scale factor nonlinearity ≤1000ppm
Weight ≤150g
Power Consumption ≤1.5W
Product Overview

The MFOG-910 is a compact, lightweight, and robust fiber optic gyroscope designed as a replacement for the Fizoptika VG910. Utilizing the Sagnac effect, it precisely measures angular velocity through a micro-nano fiber coil with no moving or wearing parts, ensuring fast startup, long operational life, and high resistance to shock and vibration.

Ideal for UAV, autonomous navigation, robotics, aerospace, and industrial automation, the MFOG-910 delivers high-precision attitude control and inertial measurement with low power consumption and stable performance in demanding environments.

Performance Parameters
Serial Number Project Performance Indicators
1 Range (°/s) ±240
2 Scale factor (mV/°/s) 47±5
3 Scale factor nonlinearity (ppm) ≤1000
4 Zero-bias stability (10s, 1σ, °/H) ≤0.8
5 Zero-bias repeatability (1σ, °/H) ≤0.8
6 3dB Bandwidth (Hz) ≥1000
7 Random walk (°/√H) ≤0.02
8 Power supply (V) 5+0.25+12
9 Power Consumption (W) ≤1.5
10 Impact (g) ≥1500
11 Acceleration (g) ≥70
12 Life (years) (calculated assessment) ≥15
13 MTBF (Calculated Assessment) ≥100000
Product Diagrams

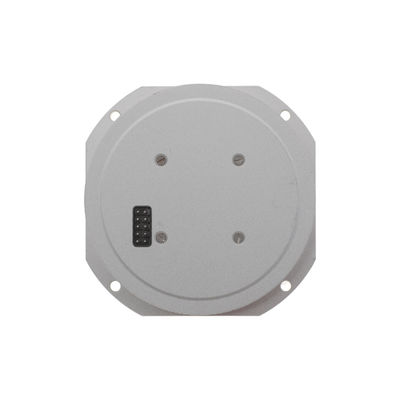

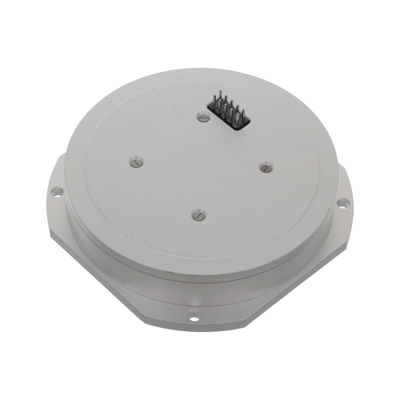

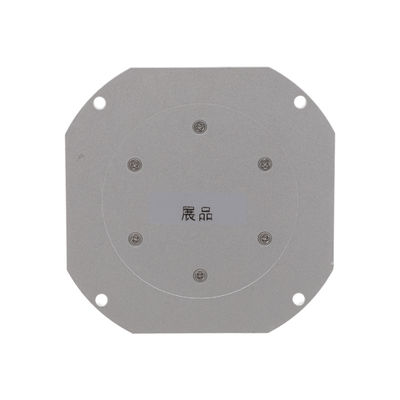

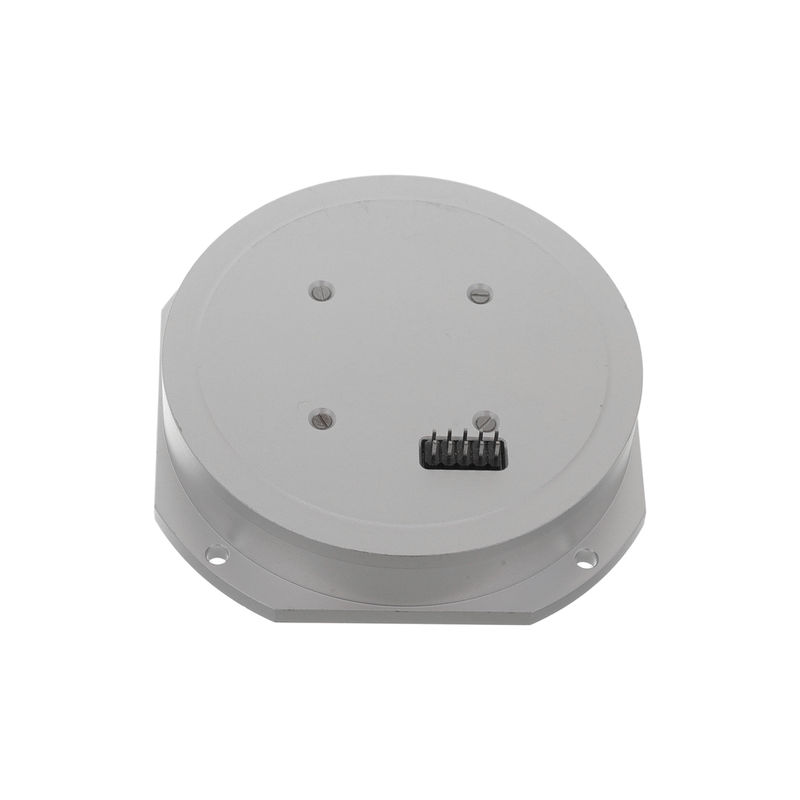

Fizoptika VG910 Open-Loop Fiber Optic Gyroscope Angular Rate Sensor 0 Fizoptika VG910 Open-Loop Fiber Optic Gyroscope Angular Rate Sensor 1
