±12-±15V Vibration Measurement Detecting the Smallest Vibrations with High Sensitivity

Product Description:

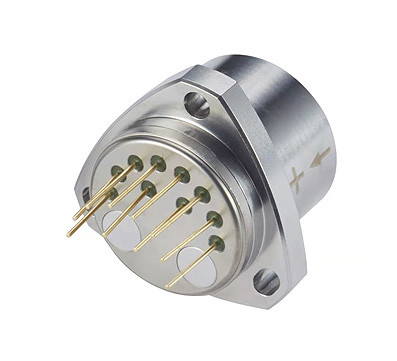

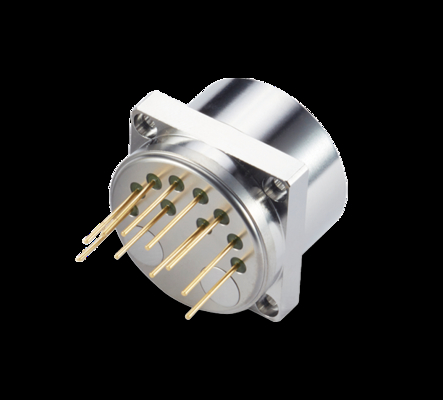

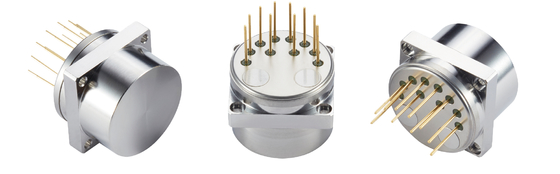

The Quartz Flexure Accelerometer has a range of 50g, making it ideal for a wide range of applications that require precise acceleration measurements. This product is also designed to operate in a temperature range of -55~+85℃, which makes it suitable for use in harsh environments.

The Quartz Flexure Accelerometer has a Class II nonlinearity coefficient of k2/k1: ≤±10μg /g2. This means that the sensor is highly accurate and provides reliable measurements of acceleration. This product also has a noise level of ≤5mv (sample resistance 840Ω), which ensures that the measurements are precise and accurate.

The bandwidth of the Quartz Flexure Accelerometer is 800~2500 Hz, which makes it perfect for applications that require high-speed measurements of acceleration. This product is also designed to be easy to use and install, making it a popular choice among customers who need a reliable and accurate quartz accelerometer.

Features:

• Product Name: Quartz Flexure Accelerometer
• Acceleration Sensor: Yes
• Bias thermal coefficient: ≤±10 μg /℃
• Range: 50g
• Threshold /Resolution: 1μg
• 0g 4 hours short time stability: ≤10 μg
• Class II nonlinearity coefficient k2/k1: ≤±10μg /g2

This product is a type of flexure accelerometer, also known as a quartz accelerometer.

Technical Parameters:

This product is a quartz vibration sensor, quartz accelerometer, and flexure accelerometer.

Applications:

This flexure accelerometer is designed for precision Vibration Measurement and is suitable for use in a variety of industrial scenarios. It has a bandwidth of 800~2500 Hz, making it ideal for use in aerospace, automotive, and transportation industries where high-frequency vibrations need to be measured. The AV1-01 is also highly repeatable with a scale factor repeatability of Sigma kl/kl( 1σ,one month): ≤15ppm. Its bias drift is also very low, with Sigma k0( 1σ,one month): ≤10 μg.

The AV1-01 has a scale factor kl of 1.05~1.30 MA/g and a Class II nonlinearity coefficient k2/k1: ≤±10μg /g2. These attributes make it an excellent choice for applications where accuracy is paramount, such as in the measurement of structural vibrations, engine vibrations, and machine tool vibrations.

In summary, the Avic Quartz Flexure Accelerometer, model number AV1-01, is a high-precision acceleration sensor that is perfect for industrial scenarios where vibration measurement is critical. Its high repeatability, low bias drift, and accuracy make it an ideal choice for use in aerospace, automotive, and transportation industries, as well as in structural and machine tool vibration measurement applications.

Customization:

Avic offers product customization services for the AV1-01 Quartz Flexure Accelerometer. This flexure accelerometer is ideal for Vibration Measurement and is manufactured in China.

The AV1-01 model is CE certified and has a minimum order quantity of 1. It is priced at 1150 USD/pcs and comes packaged in a carton with sponge for protection during transportation.

Delivery time for this product is 1 week and payment terms require 100% in advance. Avic has a supply ability of 500/month for this product.

The AV1-01 Quartz Flexure Accelerometer has a range of 50g and a noise level of ≤5mv (sample resistance 840Ω). The scale factor kl is between 1.05~1.30 MA/g. Bias drift Sigma k0 (1σ, one month) is ≤10 μg and the repeatability of scale factor Sigma kl/kl(1σ, one month) is ≤15ppm.

Packing and Shipping:

Product Packaging:

• The Quartz Flexure Accelerometer will be packaged in a sturdy cardboard box to ensure safe transportation.
• The product will be securely placed in foam padding to prevent any damage during shipping.
• The box will be sealed with durable packing tape to prevent any tampering during transit.

Shipping:

• The product will be shipped via a trusted courier service.
• The shipping cost will be calculated based on the destination and weight of the package.
• The buyer will be provided with a tracking number to track the package during transit.
• Delivery times will vary depending on the destination but typically range from 3-7 business days.

FAQ:

Q: What is the brand name of this accelerometer?

A: The brand name of this accelerometer is Avic.

Q: What is the model number of this accelerometer?

A: The model number of this accelerometer is AV1-01.

Q: Where is this accelerometer manufactured?

A: This accelerometer is manufactured in China.

Q: Is this accelerometer certified?

A: Yes, this accelerometer is certified with CE.

Q: What is the minimum order quantity for this accelerometer?

A: The minimum order quantity for this accelerometer is 1.

Q: How much does this accelerometer cost?

A: This accelerometer costs 1150 USD/pcs.

Q: How is this accelerometer packaged?

A: This accelerometer is packaged in a carton with sponge.

Q: What is the delivery time for this accelerometer?

A: The delivery time for this accelerometer is 1 week.

Q: What are the payment terms for this accelerometer?

A: The payment terms for this accelerometer is 100% in advance.

Q: How many accelerometers can be supplied per month?

A: We can supply up to 500 accelerometers per month.
